Description

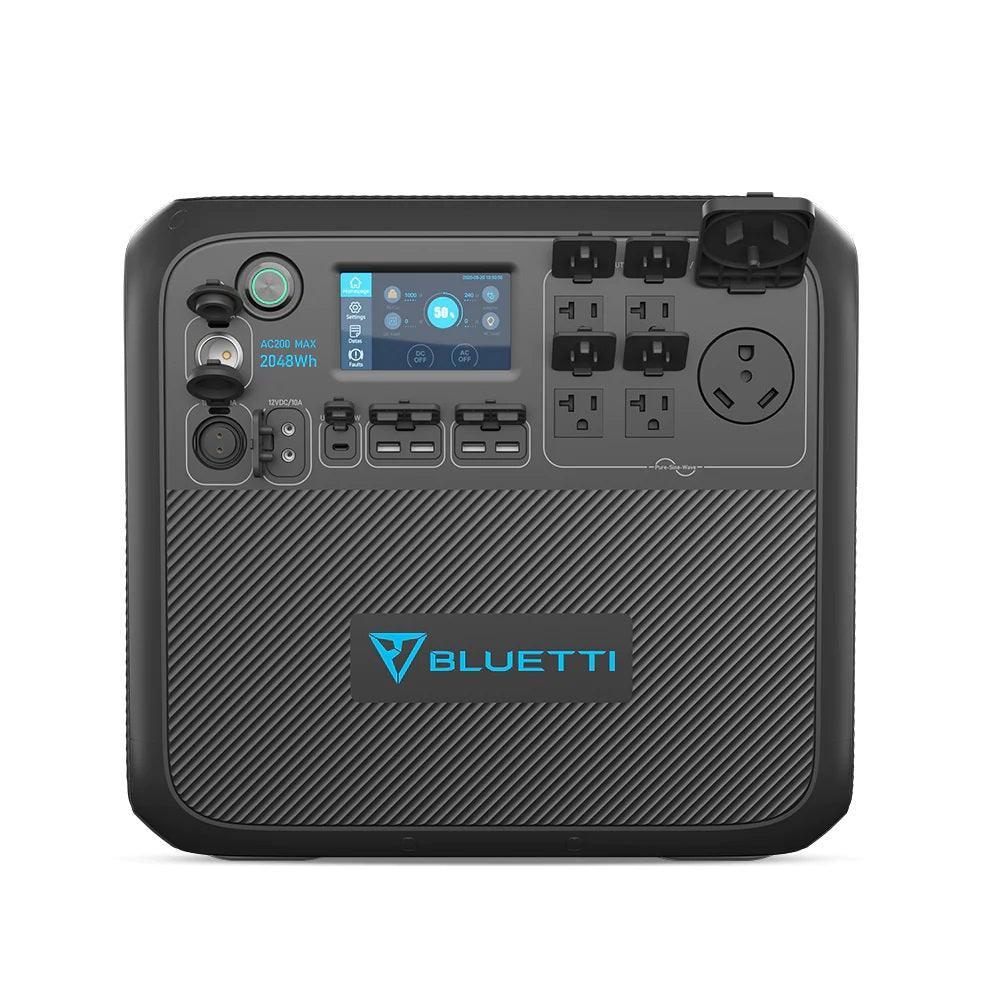

| BLUETTI AC200MAX Power Station | |
| Weight | 61.9lbs (28.1kg) |
| Dimensions (LxWxD) | 16.5 x 11 x 15.2in ( 42 x 28 x 38.65cm) |
| Operating Temperature | -4-104℉ (-20-40℃) |
| Storage Temperature | 14-113℉ (-10-45℃) |
| Capacity | 2048Wh (51.2V, 40Ah) |
| Battery Type | LiFePO4 |
Battery Cycle | 3500+ |
| Management System | MPPT Controller, BMS, etc |
| AC Outlets | 4 x 120V/20A Outlets 1 x 120V/30A NEMA TT-30 2200W In Total |
| Inverter Type | Pure Sine Wave |
| Surge Power | 4800W |
| USB-C Port | 1 x 100W Max. |
| USB-A Port | 2 x 5V/3A USB-A 2 x 18W USB-A |
| 12V DC Outlets | 1 x 12V/30A (RV Outlet) 1 x 12V/10A (Car Outlet) 2 x 12V/10A DC 5521 (5.5mm Outlet) *All Regulated. |
| Wireless Charging Pad | 2 x 15W Max. (For Each) |
| Warranty | 4 Years |
| AC Adapter Input | 500W |
| AC Adapter Recharge Time | 5.5~6 Hours |
| Solar Input | 900W Max., VOC 10-145VDC, 15A |
| Solar Recharge Time | 3~3.5 Hours |
| 12V/24V Car Outlet (100W/200W) Recharge Time | 10 or 20 Hours |
| AC Adapter + Solar (1400W) Recharge Time | 2.0~2.5 Hours |
| Dual AC Adapters (1000W) Recharge Time | 3~3.5 Hours |
| Package | AC200 Max Power Station T500 AC Adapter & Cable PV Charging Cable (XT90-MC4) Car Charging Cable (XT90) User Manual XT-90 Aviation Cable Warranty Card Certificate of QC PASS |

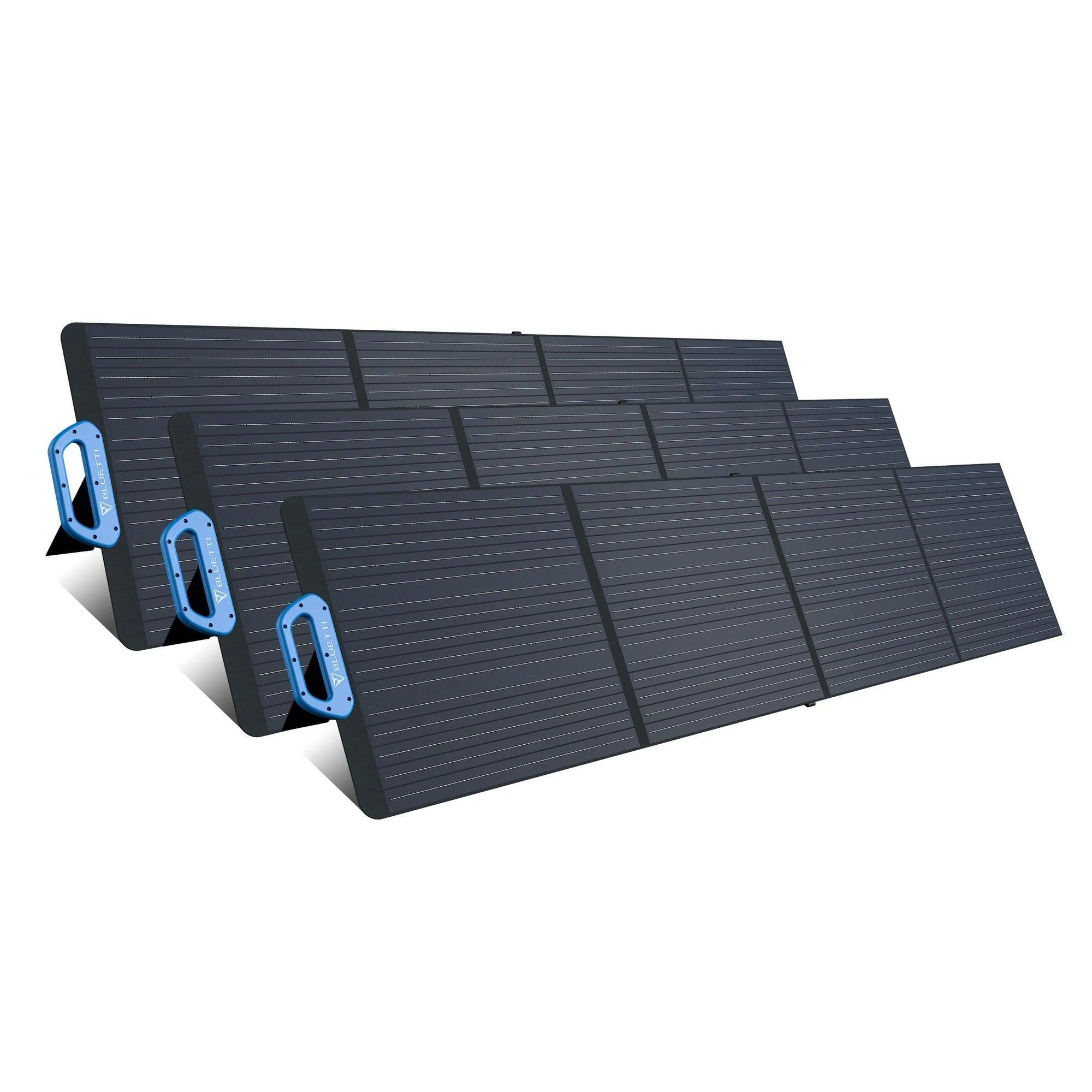

| PV200 Solar Panel | |
| Weight | 16.1lbs (7.3kg) |
| Product Dimensions (Fold) | 23.2 × 24.8inch (59 × 60cm) |
| Product Dimensions (Unfold) | 23.2 × 89.2in (59 × 226.5cm) |
| Connector | Standard MC4 Connector |
| Operating Temperature | 14-149℉ (-10-65℃) |
| Best Working Temperature | 77℉ (25℃) |
| Cable Length | 118in (3m) |
| Power | 200W |
| Lamination | ETFE (Ethylene tetrafluoroethylene) |
| Cell Type | Monocrystalline Silicon |
| Cell Efficiency | Up to 23.4% |
| Voltage at Max Power | 20.5V |
| Current at Max Power | 9.7A |
| Open Circuit Voltage | 26.1V |
| Short Circuit Current | 10.3A |
| Warranty | 12 months |
| Package | BLUETTI PV200 Foldable Solar Panel User Manual Warranty Card QC Card |

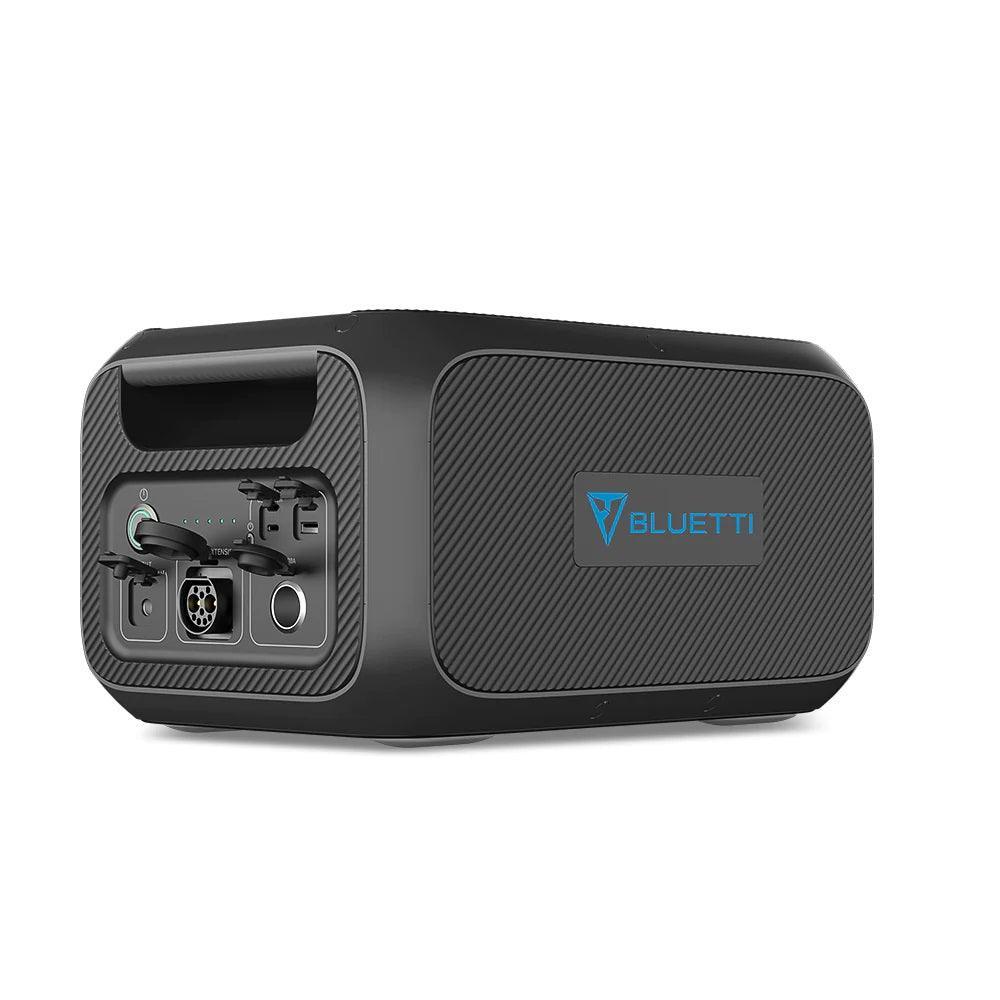

| B230 | |
| Weight | 48lbs (21.8kg) |
Dimensions (LxWxD) | 16.5 x 11 x 8.9in ( 42 x 28 x 22.75cm) |
| Operating Temperature | 32°F-104°F (0-40°C) |
| Storage Temperature | -4-104℉(-20-40℃) |
| Capacity | 2048Wh |
| Type | LiFePO4 |
| Life Cycle | 3500+ |
| Management System | MPPT Charge Controller, BMS, etc. |
| USB-C Port Output | 1 x 100W Max. |
| USB-A Port Output | 1 x 18W |
| DC Outlets | 1 x 12V/10A (Car Outlet) |
| AC Adapter Input | 500W Max. |
| Solar Input | 500W Max., VOC 12-60VDC, 10A (Via BLUETTI D050S) |
| Car Input | 12/24V from Cigarette Lighter Port (Via BLUETTI D050S) |
| Lead-acid battery | 12/24V from Cigarette Lighter Port (Via BLUETTI D050S) |
| Maximum Input | 500W |
| AC Adapter (400W) Recharge Time | 5.5~6 Hours |
| Solar (500W) Recharge Time | 4.5~5 Hours |
| 12V/24V Car Outlet (100W/200W) Recharge Time | 10 or 20 Hours |
| Warranty | 48 Months |
| Package | B300 Expansion Battery User Manual Battery Expansion Cable (P090A) QC Card Solar Charging Cable (MC4 to XT90) Warranty Card |
